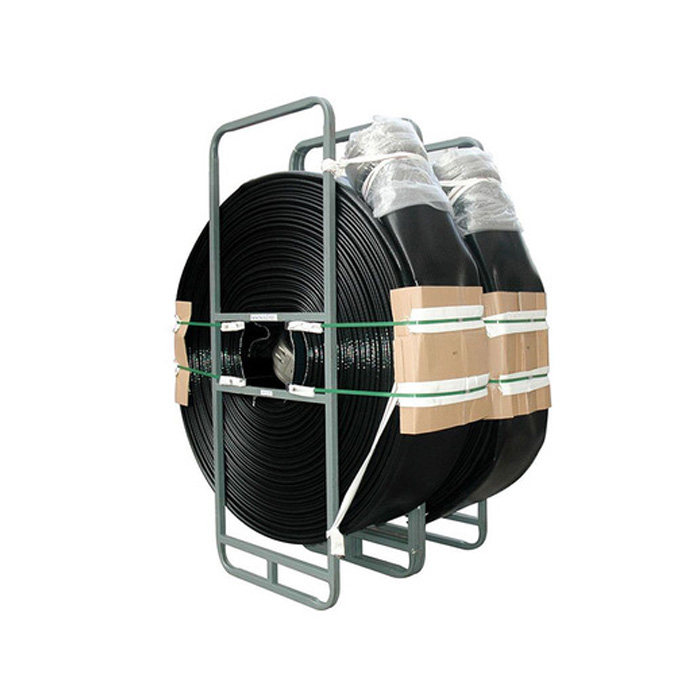

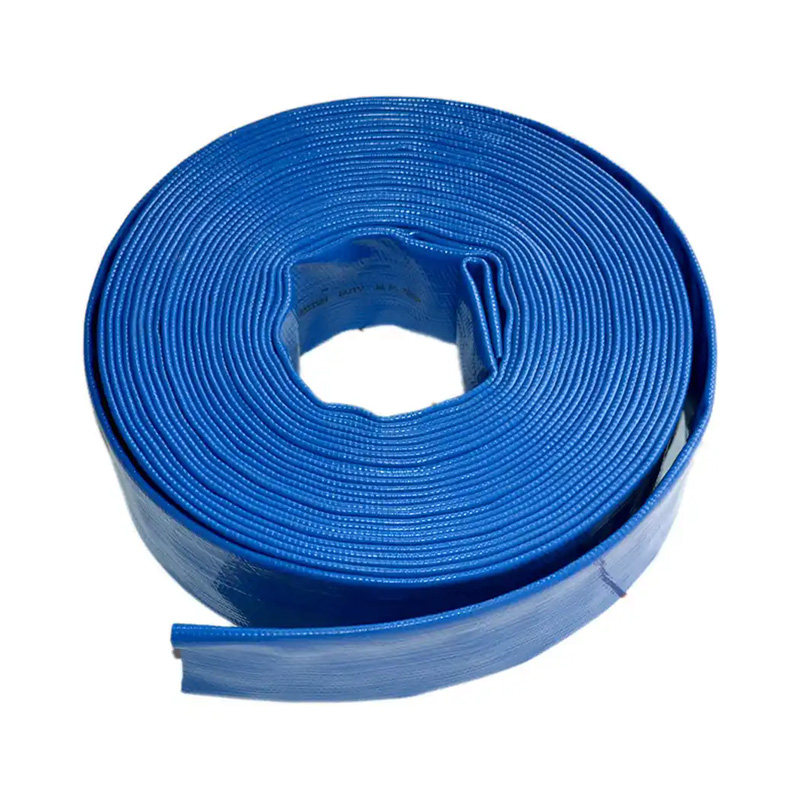

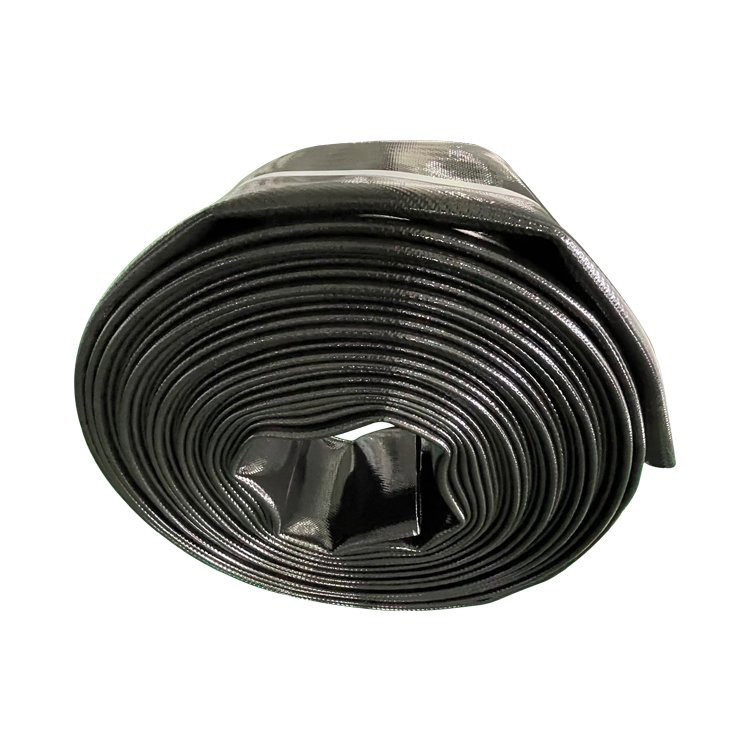

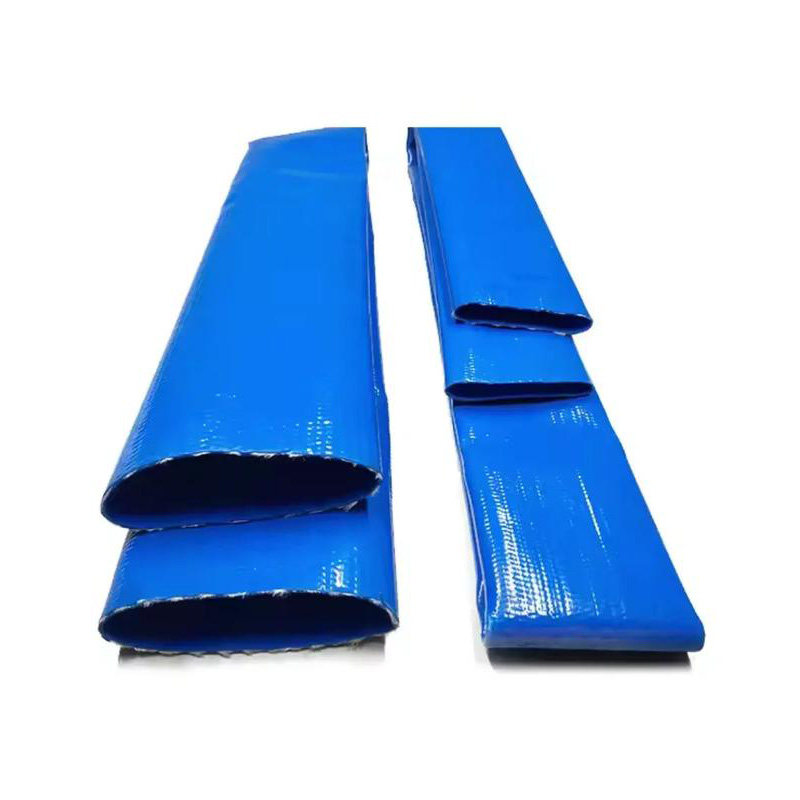

Large Diameter Hose

Feature

• Easy to clean, no need to dry.

• Specially designed for long service life, tough and durable, with excellent wear resistance and cutting resistance, suitable for various environmental conditions.

• Prevent mechanical damage.

• Under pressure, the elongation rate is extremely low (compared to vulcanization process), which can prevent the hose from "snaking".

• Highly heat-resistant, fuel resistant, chemical resistant, UV resistant, ozone resistant, aging resistant, hydrolysis resistant, and resistant to microbial erosion.

• Tube and sheath: Thermoplastic polyurethane (TPU).

• Strengthening: High strength polyester filament, circular weaving process.

• The special extrusion "weaving" process tightly combines the outer layer with the inner lining and firmly wraps around the woven polyester.

• Temperature range: -50 ℃ to+70 ℃.

Application

Construction, mining, ocean, chemical transportation, fracturing water services, oil and gas (with conductive fibers), drinking water, wastewater or transportation of highly abrasive surfaces.

Color

Black, red, blue, customizable.

Standard

GB6246、EN14540、UN19487， Or according to customer requirements.

Standard length

Up to 200 meters (660 feet) long

Structure

Product Parameters

Note: Weights & Wall Thickness may vary with finished products. For 6" hoses, bursting pressure shall be up to 1218 Psi.
