EPDM water hose

Lined Fire Hoses

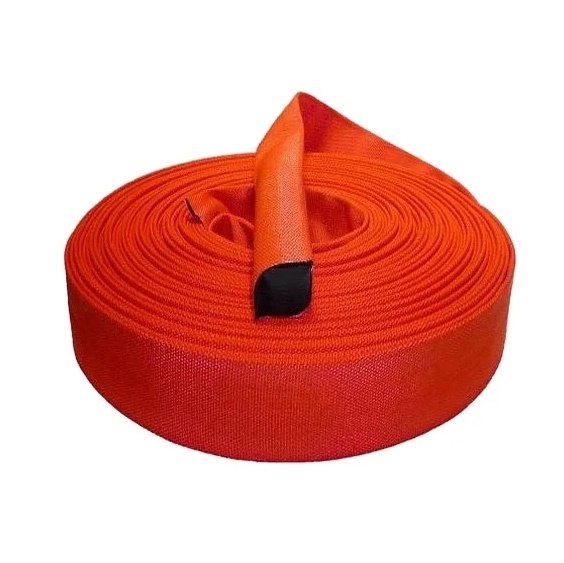

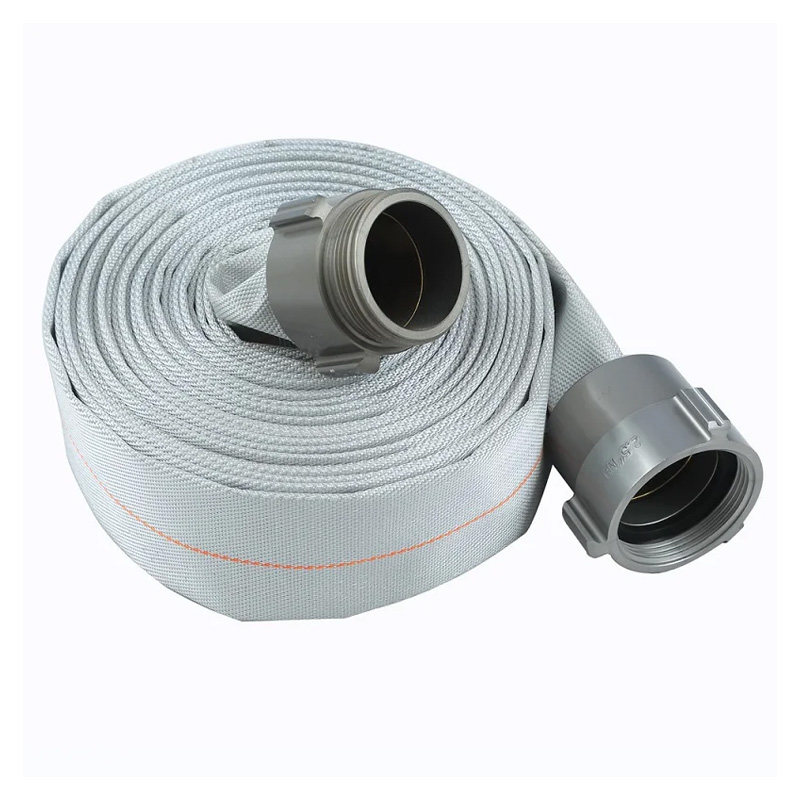

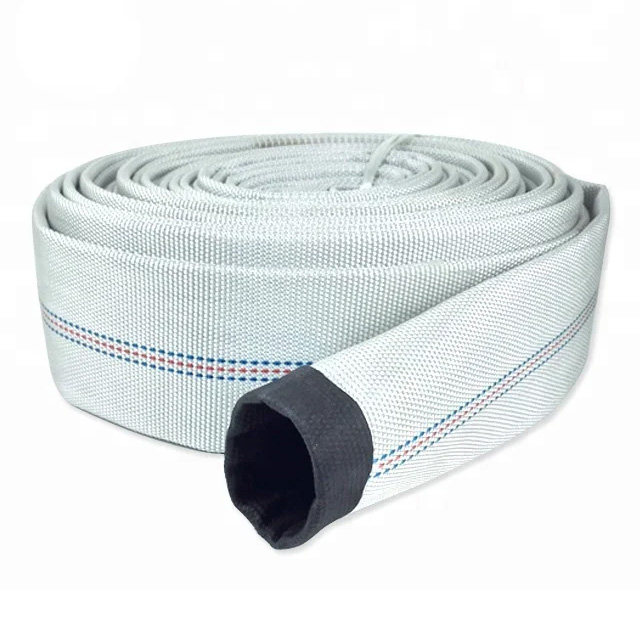

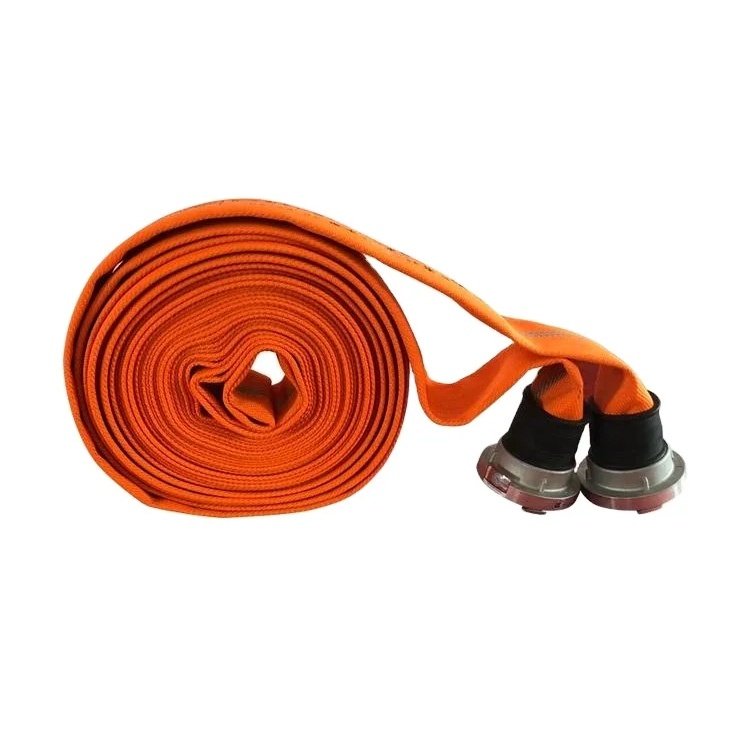

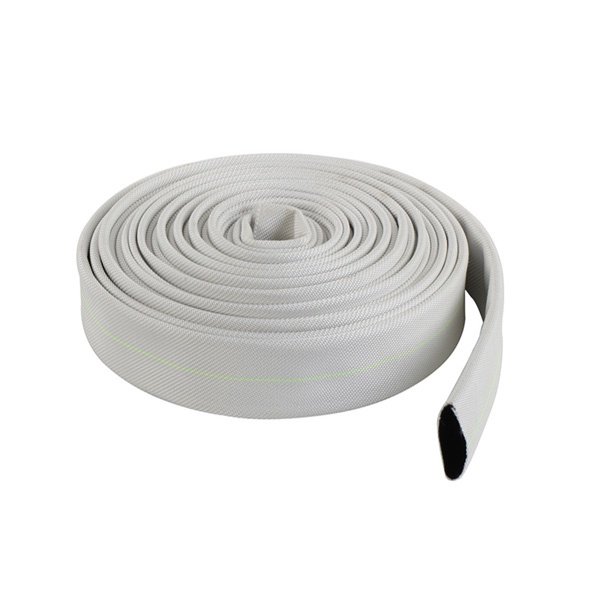

EPDM lined fire hose with smooth inner wall, low water flow resistance, good pressure resistance, wear resistance, corrosion resistance, high and low temperature resistance, and long service life.

Product Details

Product Description

EPDM lined fire hose with smooth inner wall, low water flow resistance, good pressure resistance, wear resistance, corrosion resistance, high and low temperature resistance, and long service life.

Composition structure

The outer layer is made of high-strength polyester filament or polyester yarn, interwoven by circular weaving machine, and the inner layer is made of high-quality EPDM.

Weaving pattern

Plain or diagonal weave

Standard length

15 meters, 20 meters, 25 meters, 30 meters, 40 meters, customized special length according to customer needs

Temperature range

-54 ℃ -100 ℃

Water hose color

The standard color is white, and other colors can be customized.

Application areas

Firefighting, industry, agriculture, forestry, and shipbuilding.

Hot melt adhesive characteristics

Light weight, good bonding strength.

The characteristics of using rubber backing adhesive

It is more flexible than hoses using other adhesives and has higher heat resistance.

Construction

Product Parameters

Caliber		Work Pressure			Burst Pressure
inchmm	mm	Bar	Mpa	Psi	Bar	Mpa	Psi
1"	25	13-25	1.3-2.5	190-365	39-75	3.9-7.5	570-1090
1-1/4"	32	8-25	0.8-2.5	190-365	24-75	2.4-7.5	350-1090
1-12	38	8-25	0.8-2.5	120-365	24-75	2.4-7.5	350-1090(FM and MED certification)
1-3/4"	45	8-25	0.8-2.5	120-365	24-75	2.4-7.5	350-1090(FM certification)
2"	52	8-25	0.8-2.5	120-365	24-75	2.4-7.5	350-1090(UL, FM, and MED certifications)
2-1/2"	64	8-25	0.8-2.5	120-365	24-75	2.4-7.5	350-1090(UL, FM, and MED certifications)
2-3/4"	70	8-25	0.8-2.5	120-365	24-75	2.4-7.5	350-1090
3"	75	8-25	0.8-2.5	120-365	24-75	2.4-7.5	350-1090
4"	102	8-16	0.8-1.6	120-235	24-48	2.4-4.8	350-700
5"	127	8-13	0.8-1.3	120-190	24-39	2.4-3.9	350-570
6"	152	8-13	0.8-1.3	120-190	24-39	2.4-3.9	350-570

PS: For UUFM certified fire hoses, the working pressure is 250Psi and the burst pressure is 750Psi. For MED fire hoses, the working pressure is 15bar and the burst pressure is 45bar, with or without a red coating.
