Product Introduction

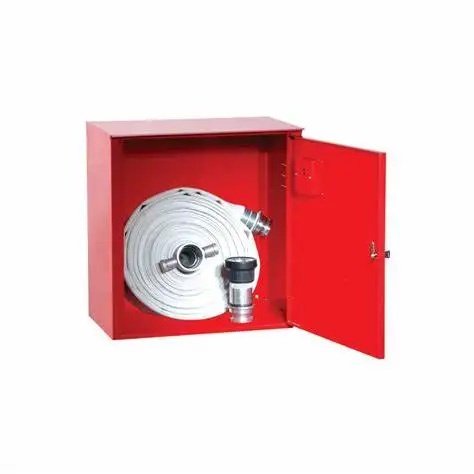

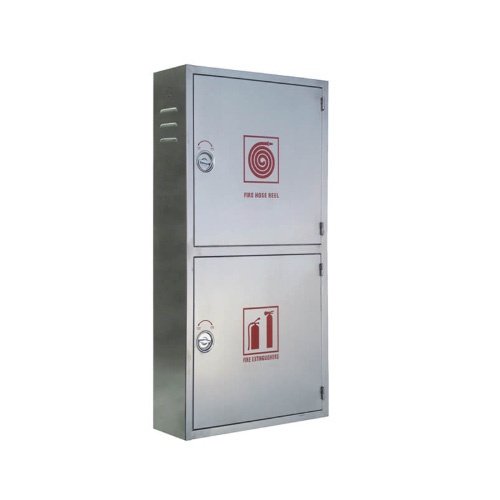

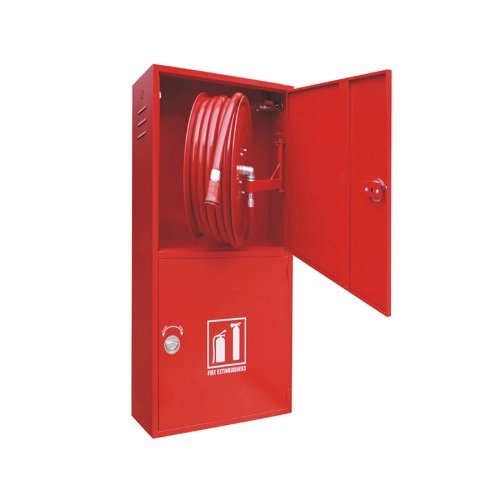

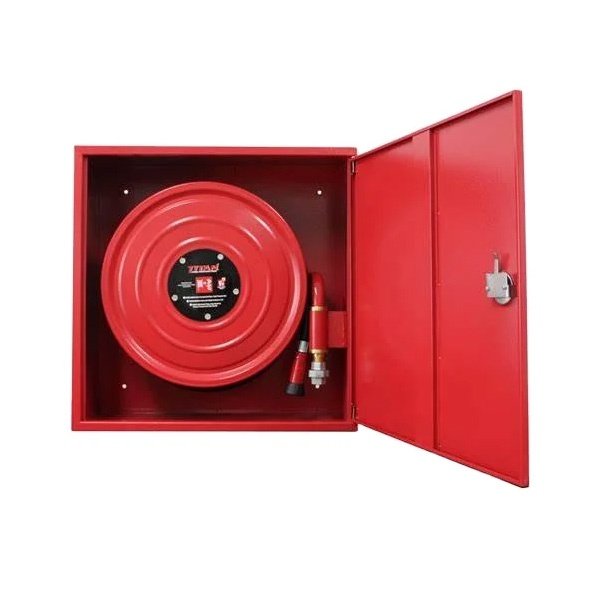

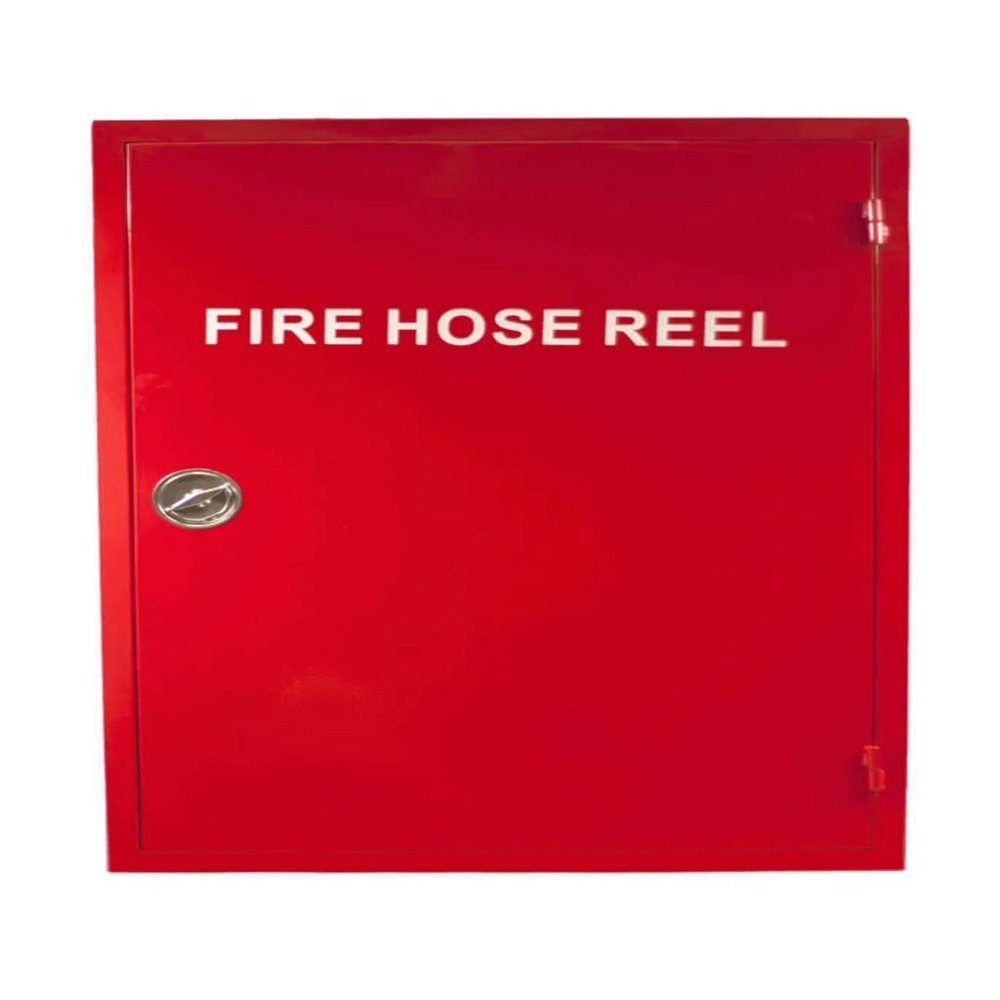

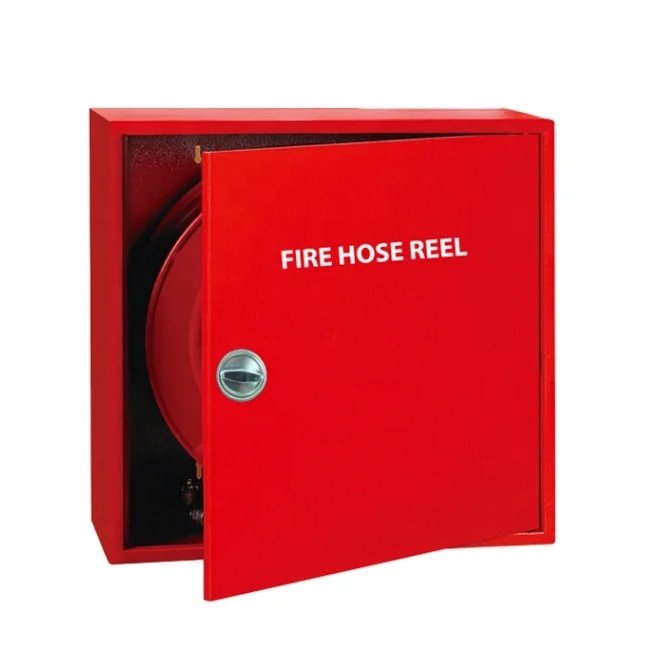

Wall mounted lifting fire cabinet is an integrated fire equipment storage device that is wall mounted and can be lifted and placed. It integrates fire extinguishers, hoses, interfaces, wrenches and other equipment. It saves space when hung on the wall and can be quickly lowered and used in emergency situations, balancing aesthetics, safety and emergency efficiency.

Core Features

-Space saving: Wall mounted installation, does not take up floor space, suitable for narrow areas such as corridors, hallways, and computer rooms.

-Convenient lifting: manual/electric lifting, one click lowering, both elderly and female can operate quickly.

-Efficient access: The cabinet door can be quickly opened (without lock/broken glass/press type), and equipment can be accessed within 10 seconds.

-Durable and sturdy: The main body is made of cold-rolled steel plate/304 stainless steel, with a thickness of 1.0-1.5mm, anti-corrosion and rust proof, and fire resistance of ≥ 30 minutes.

-Adequate protection: dust-proof, moisture-proof, anti-collision, protecting equipment from environmental damage.

-Clear identification: red background with white text and transparent window, prominently positioned for easy daily inspection.

-Safety compliance: Complies with national standards such as GB50140 and has passed the Fire Protection Product Certification (CCCF).

Application scope

-Commercial venues: shopping malls, supermarkets, office buildings, hotels, shops, restaurants

-Industrial sites: factory workshops, warehouses, distribution rooms, computer rooms, garages

-Public areas: schools, hospitals, stations, subway stations, community corridors

-Residential properties: high-rise residential buildings, apartments, underground garages, property duty rooms

-Special Scenarios: Ships, Construction Machinery, Gas Stations, Chemical Zones (Explosion proof)

Common specifications (reference)

-Installation method: wall mounted surface installation/embedded concealed installation

-Cabinet material: cold-rolled steel plate (spray coated), 304 stainless steel (thickened)

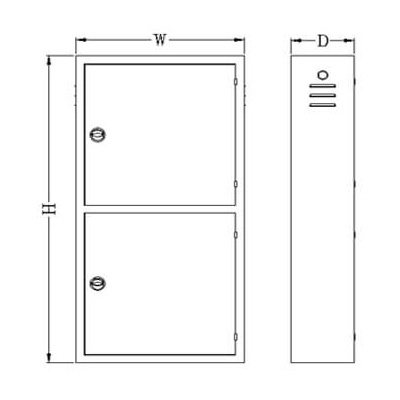

-Cabinet size (common):

-Single fire extinguisher: 400 × 300 × 120-150mm

-Dual fire extinguishers: 600 × 400 × 180-200mm

-Water hose+fire extinguisher combination: 800 × 600 × 200-250mm

-Installation height: The bottom is 1.2-1.5m above the ground for easy operation.

-Load capacity: ≥ 20kg, can store 2 pieces of 4kg dry powder+water hose+accessories

-Protection level: IP54 (dustproof and splash proof), optional IP65 for outdoor use.

-Lifting method: manual rope pulling/electric button (can still be manually operated in case of emergency power failure)

Precautions for use

1. Installation requirements

-Fixed on load-bearing walls/solid walls, expansion bolts are firm, and installation on lightweight partition walls is strictly prohibited.

-Avoid areas with high temperature, humidity, corrosion, direct sunlight, and keep away from heat and water sources.

-There is no obstruction around, ensuring 100% visibility and not occupying evacuation routes.

2. Daily management

-It is strictly prohibited to lock (or use broken glass/emergency locks), store miscellaneous items, and ensure that they can be accessed at any time.

-Monthly inspection: Check for any deformation of the cabinet, smooth lifting and lowering, intact equipment, and normal pressure.

-Every year, it is inspected and maintained by a professional organization to ensure the reliability of the lifting mechanism and locks.

3. Emergency operation

-In case of a fire, simply open/shatter the glass/press the switch, lower the cabinet, and remove the equipment.

-Reset, clean, and inspect in a timely manner after use to ensure availability next time.

4. Environmental adaptation

-Choose 304 stainless steel for damp/outdoor conditions, and cold-rolled steel plate for ordinary indoor conditions.

-Strictly prohibited for use in active metal and precision instrument areas (to avoid dry powder contamination).
