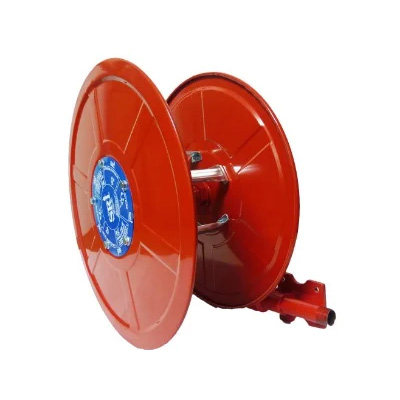

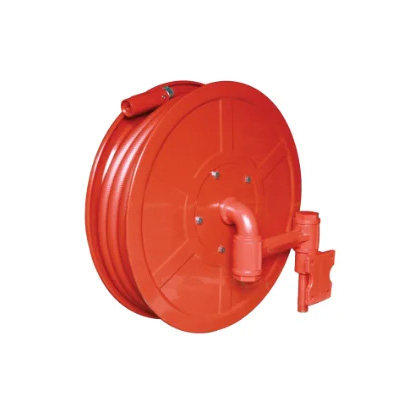

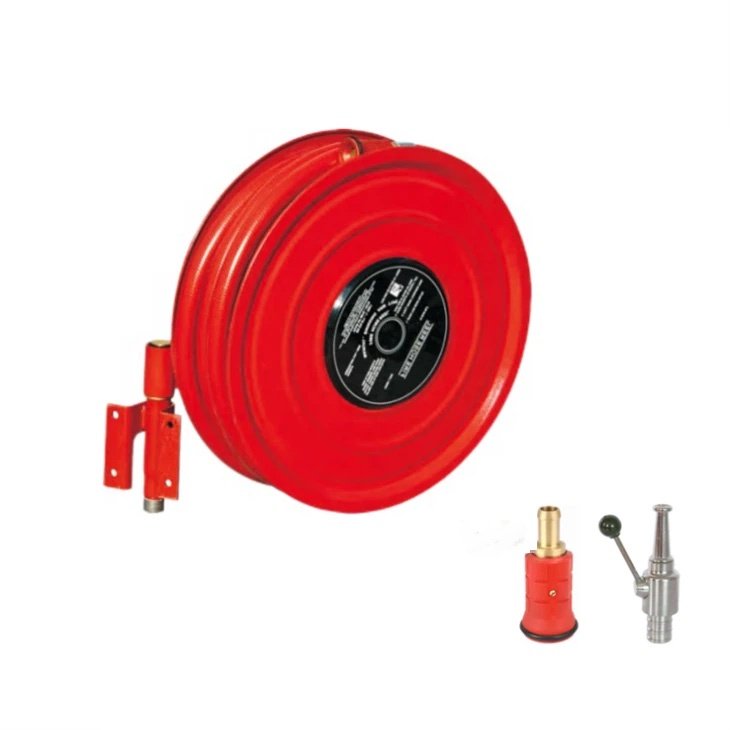

Die cast manual swing fire hose reel
Reel Hose
The die-casting manual swing fire hose reel is designed to provide reliable and immediate fire extinguishing performance for commercial, industrial, and residential fire protection systems. The water hose reel is made of high-strength die-casting reel drum and swing arm, ensuring excellent structural stability, corrosion resistance, and long-term durability under harsh working conditions.
Contact Us for Inquiry

Product Details

The die-casting manual swing fire hose reel is designed to provide reliable and immediate fire extinguishing performance for commercial, industrial, and residential fire protection systems. The water hose reel is made of high-strength die-casting reel drum and swing arm, ensuring excellent structural stability, corrosion resistance, and long-term durability under harsh working conditions.

Parameter

ModelXH-FF-06-02aXH-FF-06-02bXH-FF-06-02c
Disc Diameter550 mm/585mm
Inlet ConnectionDie Cast Swing Arm 1" BSP
Hose Size (⌀ x Length)19 mmx 25 m19 mmx 30 m25 mm x30m

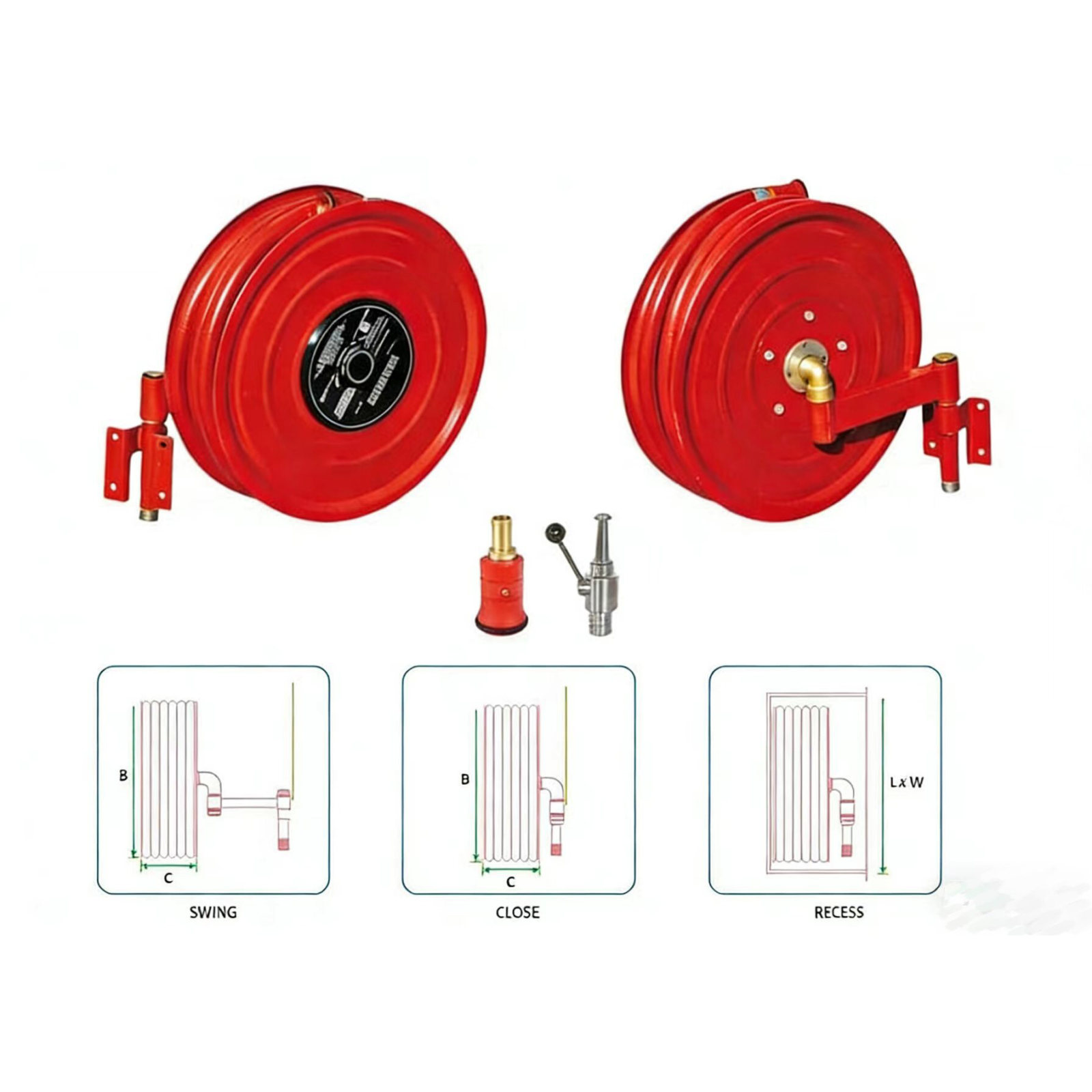

Swing Dimension (A x B x C)525 mm x550 mm x 160 mm555 mm x 550 mm x 190 mm525 mm x 585 mm x 145 mm
Close Dimension (A x B x C)220 mm x550 mm x 160 mm250 mm x 550 mm x 190 mm210 mm x 585 mm x 145 mm
Recess Dimension (Lx W x D)700 mm x 700 mm x 250 mm700 mm x 700 mm x 290 mm730 mm x 730 mm x 225 mm
Maximum Working/Test Pressure12 bar/18 bar
Standard Nozzle TypeBrass or Nylon Jet/Spray Nozzle
Nozzle Orifice6mm
6mm7mm
Minimum Flow Rate @ 4 bar34 L/min34 L/min44 L/min
Drum FinishingRAL 3000 Flame Red Epoxy Polyester Powder Coating
