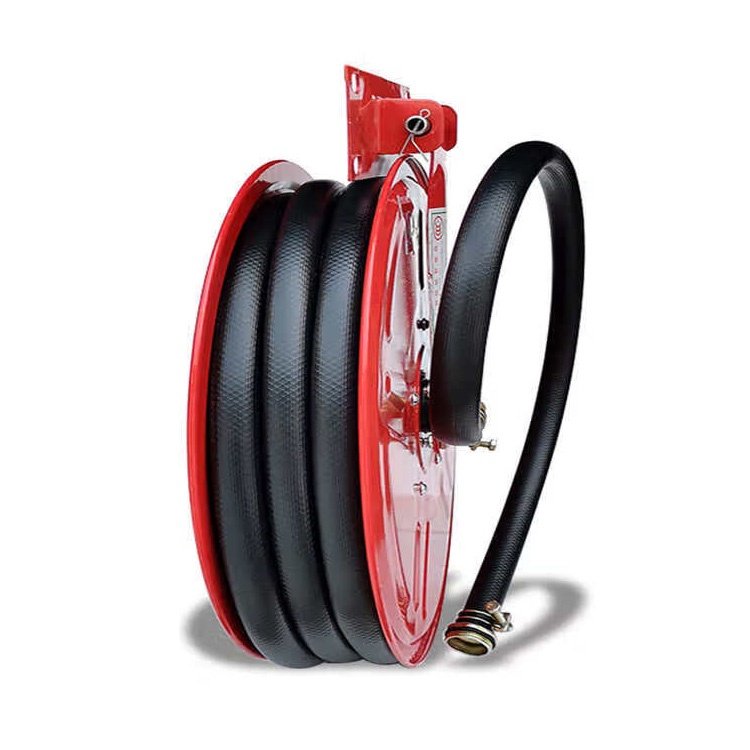

Manual swing fire hose reel inlet
Reel Hose
The manual swing type fire hose reel inlet is the manual swing type inlet of the fire hose reel system. It has a compact design and flexible installation method. Made of high-strength metal, it has excellent pressure resistance and is suitable for building fire water supply systems. The manual rotation design allows for free adjustment of the inlet direction according to on-site requirements, ensuring stable connection, smooth water supply, and easy maintenance. It complies with fire safety standards and is widely used in commercial and industrial buildings.
Contact Us for Inquiry

Product Details

The manual swing type fire hose reel inlet is the manual swing type inlet of the fire hose reel system. It has a compact design and flexible installation method. Made of high-strength metal, it has excellent pressure resistance and is suitable for building fire water supply systems. The manual rotation design allows for free adjustment of the inlet direction according to on-site requirements, ensuring stable connection, smooth water supply, and easy maintenance. It complies with fire safety standards and is widely used in commercial and industrial buildings.


Parameter

ModelXH-FF-06-03aXH-FF-06-03bXH-FF-06-03c
Disc Diameter550 mm/585mm
Inlet ConnectionHose 25 mm x 1 mHose 25 mm x 1 mHose 25 mm x 1 m
Hose Size (⌀ x Length)19 mmx 25 m19 mmx 30 m25 mm x30m

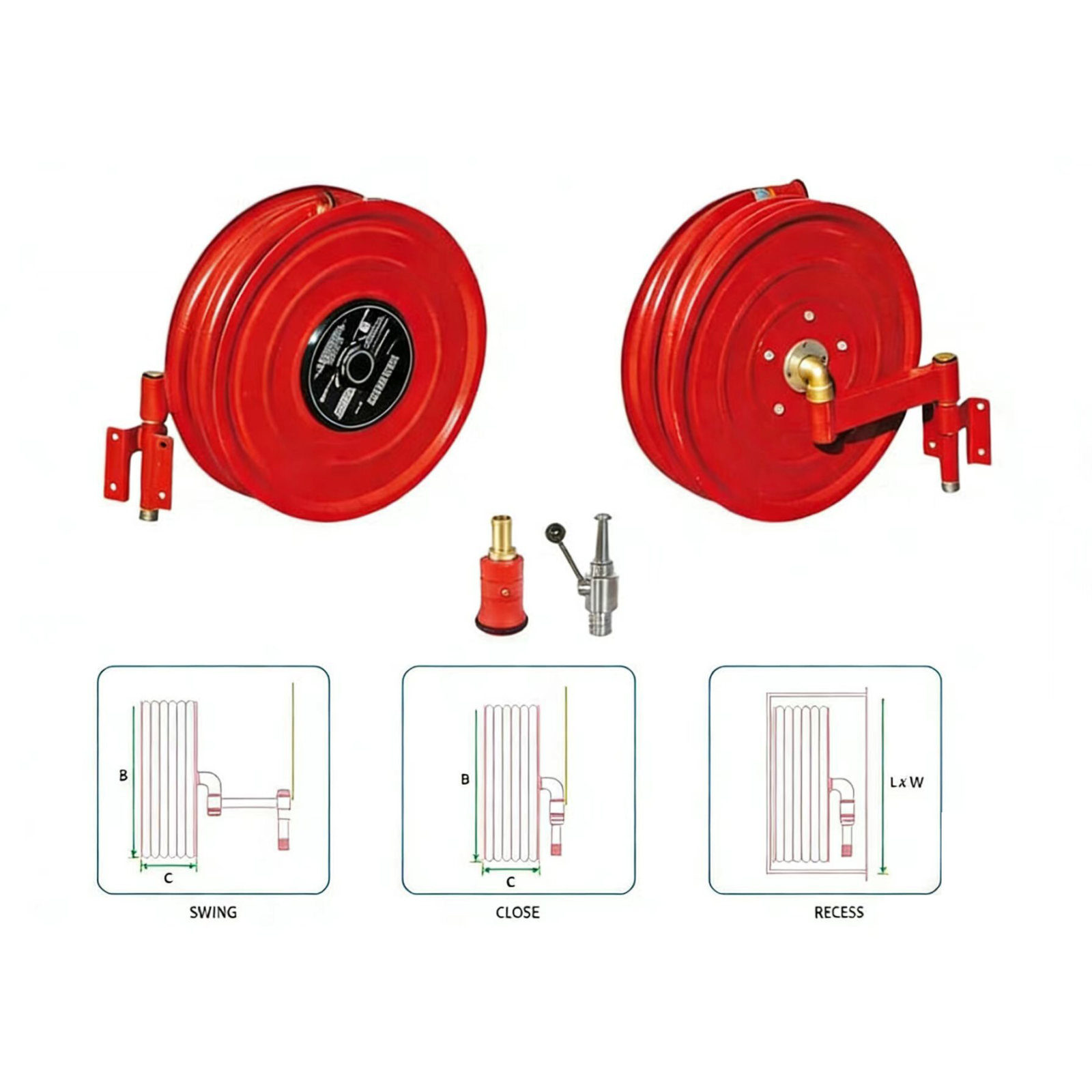

Swing Dimension (A x B x C)535 mm x 550 mm x 160 mm565 mm x 550 mm x190 mm525 mm x585 mm x 145 mm
Close Dimension (A x B x C)235 mm x 550 mm x 160 mm265 mm x 550 mm x 190 mm210 mm x585 mm x 145 mm
Recess Dimension (Lx W x D)700 mm x 700 mm x 250 mm700 mm x 700 mm x 290 mm730 mm x 730 mm x 225 mm
Maximum Working/Test Pressure12 bar/18 bar

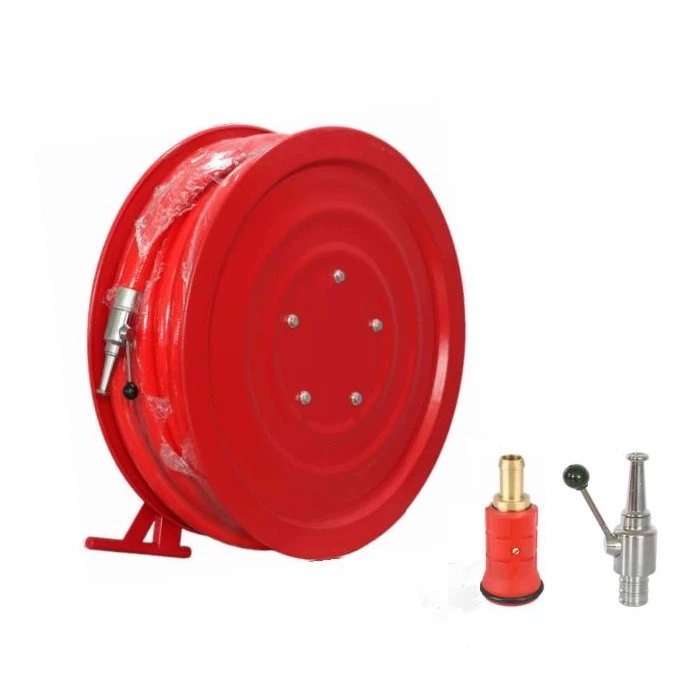

Standard Nozzle TypeBrass or Nylon Jet/Spray Nozzle
Nozzle Orifice6mm
Minimum Flow Rate @ 4 bar34 L/min
Drum FinishingRAL 3000 Flame Red Epoxy Polyester Powder Coating


FAQ

What payment terms do you accept?

We accept T/T, L/C, Western Union and Alibaba Trade Assurance. Usually 30% deposit, balance paid before shipment.

What shipping methods do you offer?

We provide sea freight, air freight and express (DHL/FedEx/UPS/TNT). Shipping time depends on your destination.

How long is the delivery time?

For in-stock items: 3–7 working days.

For customized or bulk orders: 15–30 working days.

Are your products certified?

Yes. Our fire products have CCC, CNAS and ISO certifications, meeting international market requirements.

Do you accept OEM & ODM?

Yes, we provide custom design, logo printing and OEM/ODM service according to your requirements.

What about quality warranty?

We offer a 12-month quality warranty. Free replacement and technical support are provided for quality issues.
