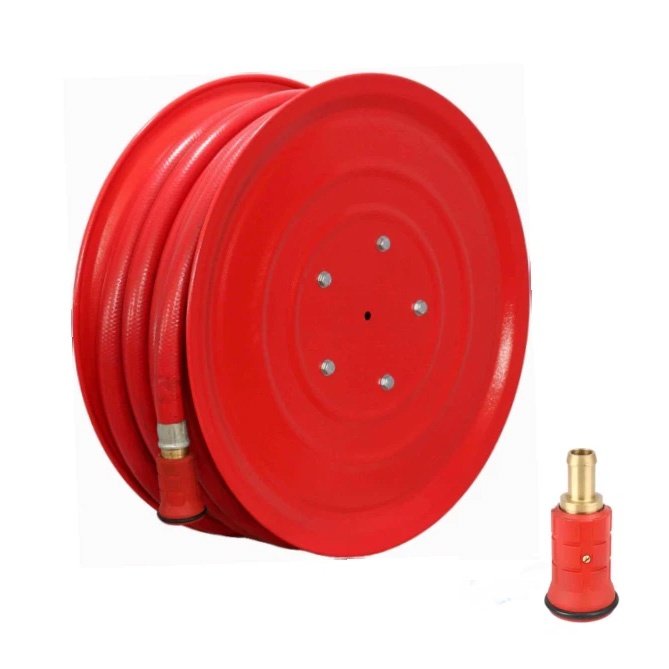

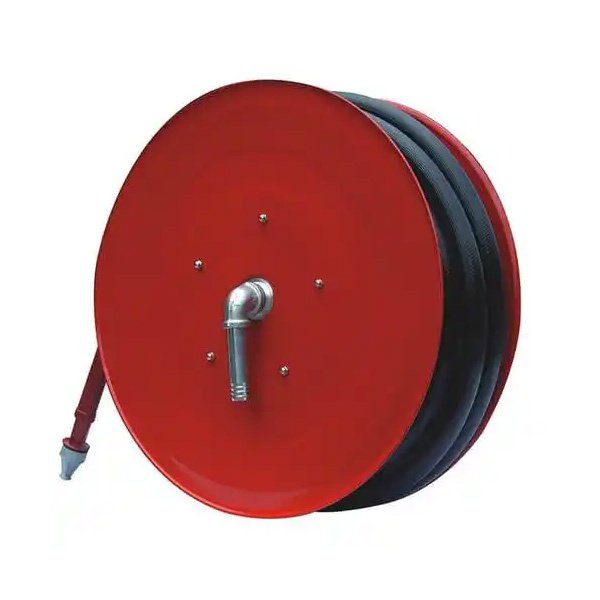

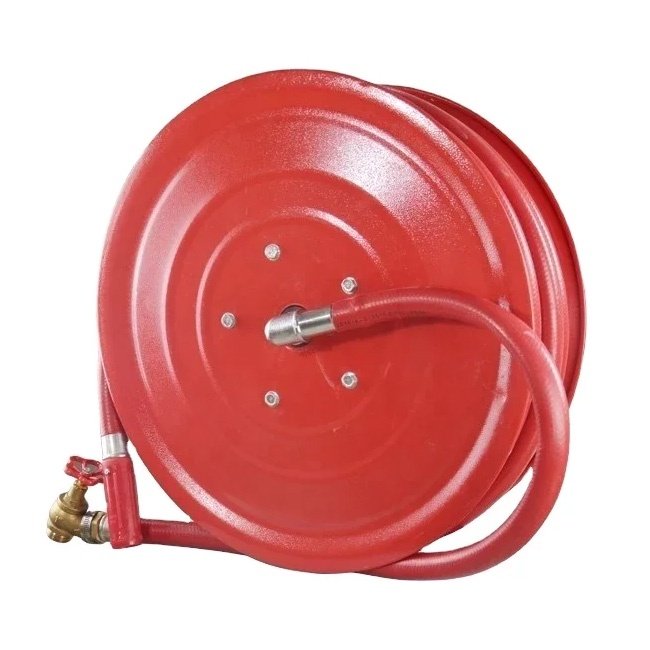

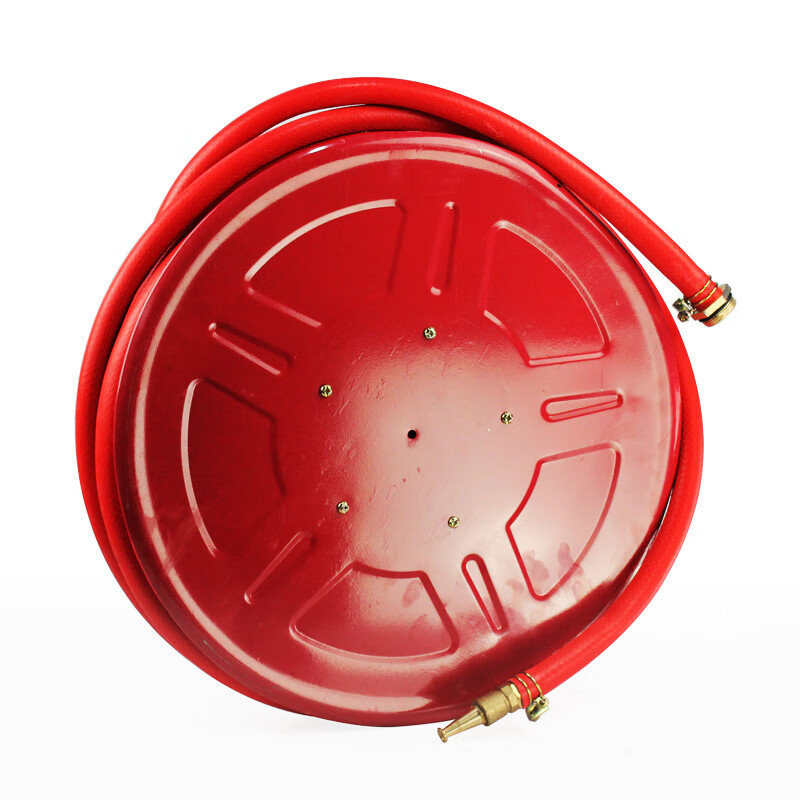

Manual swing fire hose reel

Manual swing fire hose reel
Reel Hose
Fire hose reel with hose -19/25mm swing manual
Contact Us for Inquiry

Product Details

The manual swing fire hose reel is a compact and reliable indoor fire water supply system suitable for commercial buildings, industrial plants, and public places. Its manual rotation and swing design allows for flexible deployment of the water hose in narrow spaces, achieving rapid water absorption and precise spraying. The main body of the reel is made of high-quality steel and has undergone anti-corrosion treatment to ensure stable pressure and resistance to deformation during long-term use. Equipped with high-strength fire hoses and standard interfaces, easy to maintain, in compliance with mainstream fire safety standards, suitable for rapid control of initial fires.


Product parameters

ModelXH-FF-06-01aXH-FF-06-01bXH-FF-06-01C
Disk diameter550 mm585 mm585 mm
Water inletDie cast swing arm 1-inch BSP threadDie cast swing arm 1-inch BSP threadDie cast swing arm 1-inch BSP thread
Hose size (diameter x length)19mm x 25m19mm x 30m25mm x 30m

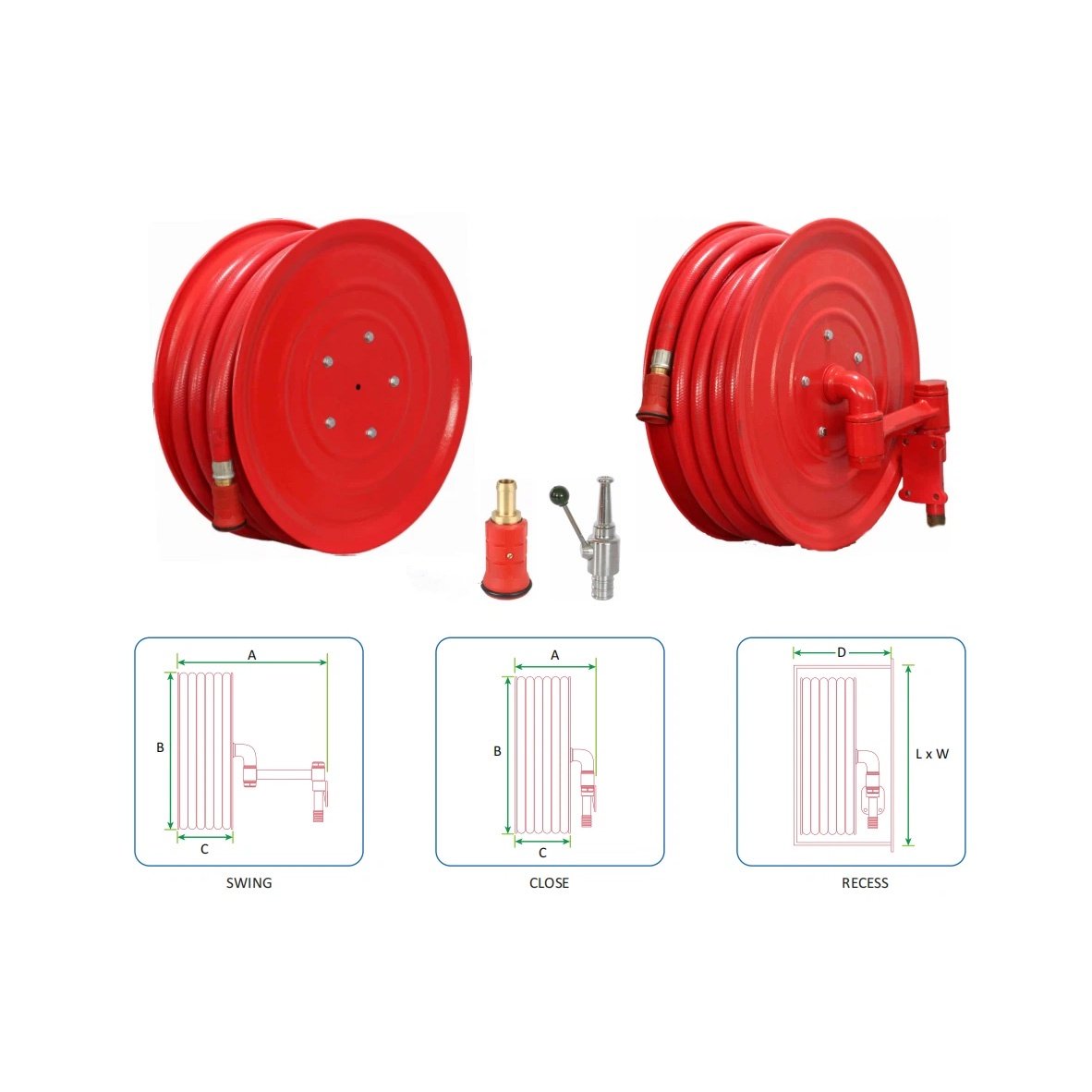

Swing size (A × B × C)495 × 550 × 160mm525 × 550 × 190mm525 × 585 × 190mm
Closing size (A × B ×C)250 × 550 × 160mm280 × 550 × 190mm280 × 585 × 190mm
Groove size (length x width x depth)700 × 700 × 290mm760 × 760 × 320mm760 × 760 × 320mm
Maximum working/testing pressure12 bar/18 bar12 bar/18 bar12 bar/18 bar
Standard nozzle typeBrass or nylon jet/nozzleBrass or nylon jet/nozzleBrass or nylon jet/nozzle
Nozzle aperture6mm6mm7mm
Minimum flow rate at 4 bar34 liters per minute34 liters per minute44 liters per minute
Drum polishingRAL3000 Flame Red Epoxy Polyethylene Glycol Powder CoatingRAL3000 Flame Red Epoxy Polyester Powder Coating

RAL3000 Flame Red Epoxy Polyester Powder Coating

certification

Certified ISO 9001:2015
Remark

Various types of nozzles and hose lengths can be provided upon request. Please refer to the nozzle section for nozzle selection.

Horizontal hose reel can be provided upon request.

A disk with a diameter of 590 millimeters can be provided upon request.


FAQ

What payment terms do you accept?

We accept T/T, L/C, Western Union and Alibaba Trade Assurance. Usually 30% deposit, balance paid before shipment.

What shipping methods do you offer?

We provide sea freight, air freight and express (DHL/FedEx/UPS/TNT). Shipping time depends on your destination.

How long is the delivery time?

For in-stock items: 3–7 working days.

For customized or bulk orders: 15–30 working days.

Are your products certified?

Yes. Our fire products have CCC, CNAS and ISO certifications, meeting international market requirements.

Do you accept OEM & ODM?

Yes, we provide custom design, logo printing and OEM/ODM service according to your requirements.

What about quality warranty?

We offer a 12-month quality warranty. Free replacement and technical support are provided for quality issues.
